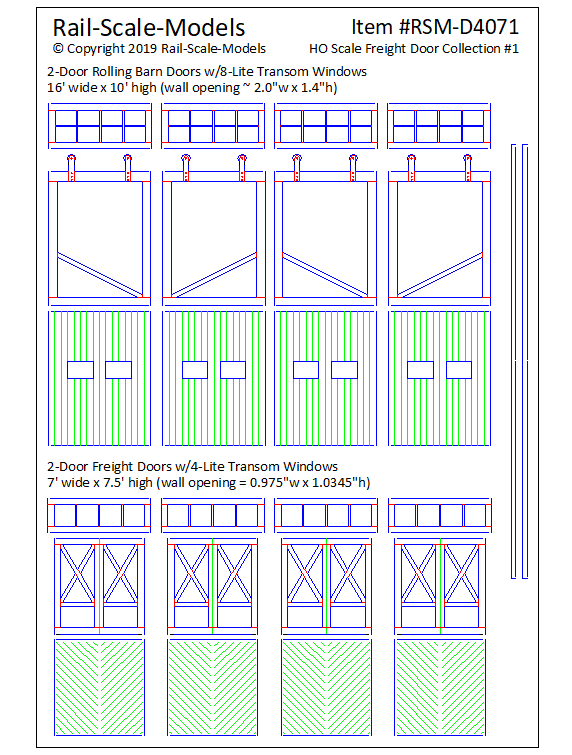

Collection of Rolling Barn Style Freight Doors and Swing Style Freight Doors - each with above door transom windows.
The Rolling Barn Style Freight Doors include two each of a double rolling door, and four each of a two-piece left-hand / right-hand pair of swing doors.
Double rolling doors are designed to cover a freight door wall opening of approximately 2.0" wide x 1.4" tall (14.5' wide x 10' tall in real scale). Rolling doors include "hardware" details for the above-door rollers and brackets, as well as a length of steel rail.
Double swing doors are designed to cover a freight door wall opening of approximately 0.975" wide x 1.035" tall (7.0' wide x 7.5' tall in real scale).
Actual door dimensions are:
> For the double rolling doors, each side is 1.10" wide x 1.45" tall.
> For the double swing doors, entire door assembly is 0.975" wide x 1.035" tall.
Transom windows are designed for a wall openings of 1.11" wide x 0.48" tall, and 1.11" wide x 0.37" tall. Includes a small sheet of acetate for window glazing.
Each of these doors are designed as a 2-layer assembly to give the 3-dimensional detail - simply peel the self-adhesive backing from the front layer, line up with the rear layer, and stick together.
Each of the doors include laser-etched details such as knot holes, nail holes, and distress markings. Lots of great detail for your scale model.
