HO Scale Variety of Doors
  (Enlarge)
Product ID RSM-D4009

HO Scale Variety of Doors

RC Board or Cardstock For more details on cardstock Click Here
RC Board
Cardstock
Adhesive Choice
Adhesive Backing
NO Adhesive Backing
Price: $7.95
Quantity:
+
-

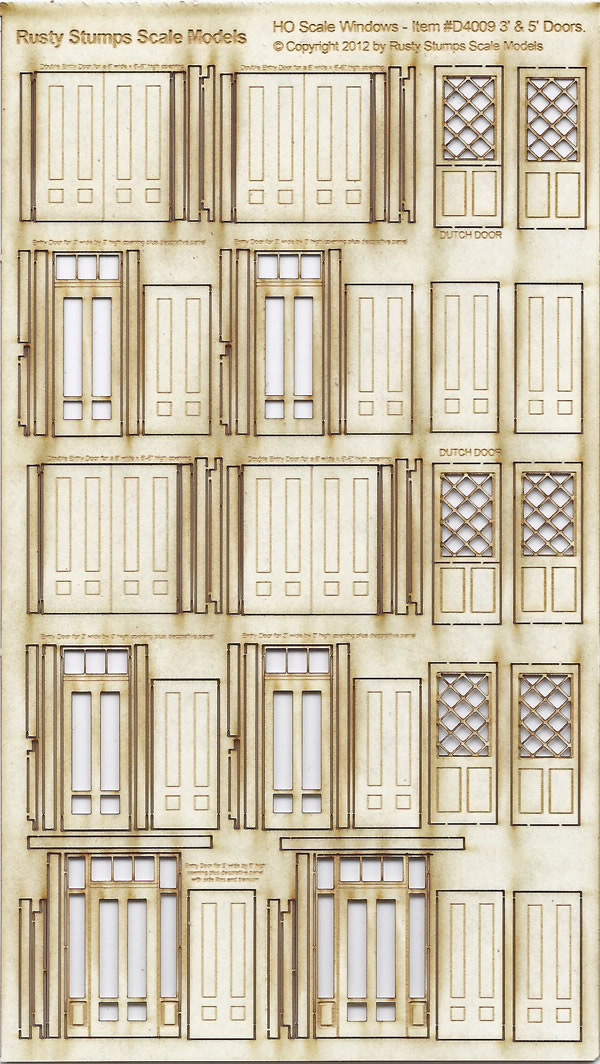

Here is a sheet of laser cut doors with accompanying acetate glazing. The sheet contains a series of single width doors with transom, double width doors and single width doors with transom and side lites.

All for the scratch builder or kit basher in you. There is framing pieces including sills and headers. These are ideal for a commercial building or doll house construction.

Sizes contained on this sheet:

Four double entry door sets for a 6'-0" wide by 6'-6" high opening

Ten (individual) mixed style of single entry doors for a 3'-0" wide by 6'-6' high opening

Four single hung entry doors with top lites for a 3'0" wide by 8'-0" high opening

Two single hung entry doors with both top and side lites for a 5'-0" wide by 8'-0" high opening

SIZES ON D4009 CARD

STYLE QTY

SCALE SIZE

ACTUAL SIZE

WIDE HIGH WIDE HIGH
Double Entry Door 4 6'-0" 6'-6" .8276" .8966"
Various Single Entry Door 10 3'-0" 6'-6" .4138" .8966"
Single Entry Door Top Lite 4 3'-0" 8'-0" .4138" 1.1034"
Single Entry Door Side Lite 2 5'-0" 8'-0" .6897" 1.1034"
Actual sizes show are approximate. You will need to use the actual items to cut the openings properly.

 NOTE ON MATERIALS: We now offer a choice between CARDSTOCK or RCBOARD.

CARDSTOCK has a smooth finish and is real stable. Does well with paints but you need to be careful when painting thin mullions. Click here to read the Q&A concerning the CardStock material.   -$0.50 discount.

RCBOARD is a plastic impregnated cardstock and is both durable and easy to paint. RCBoard works well with thin mullions but otherwise is very similar to our cardstock material. Excessive wetness can warp this board.
